AWS

Shared Responsibility Model

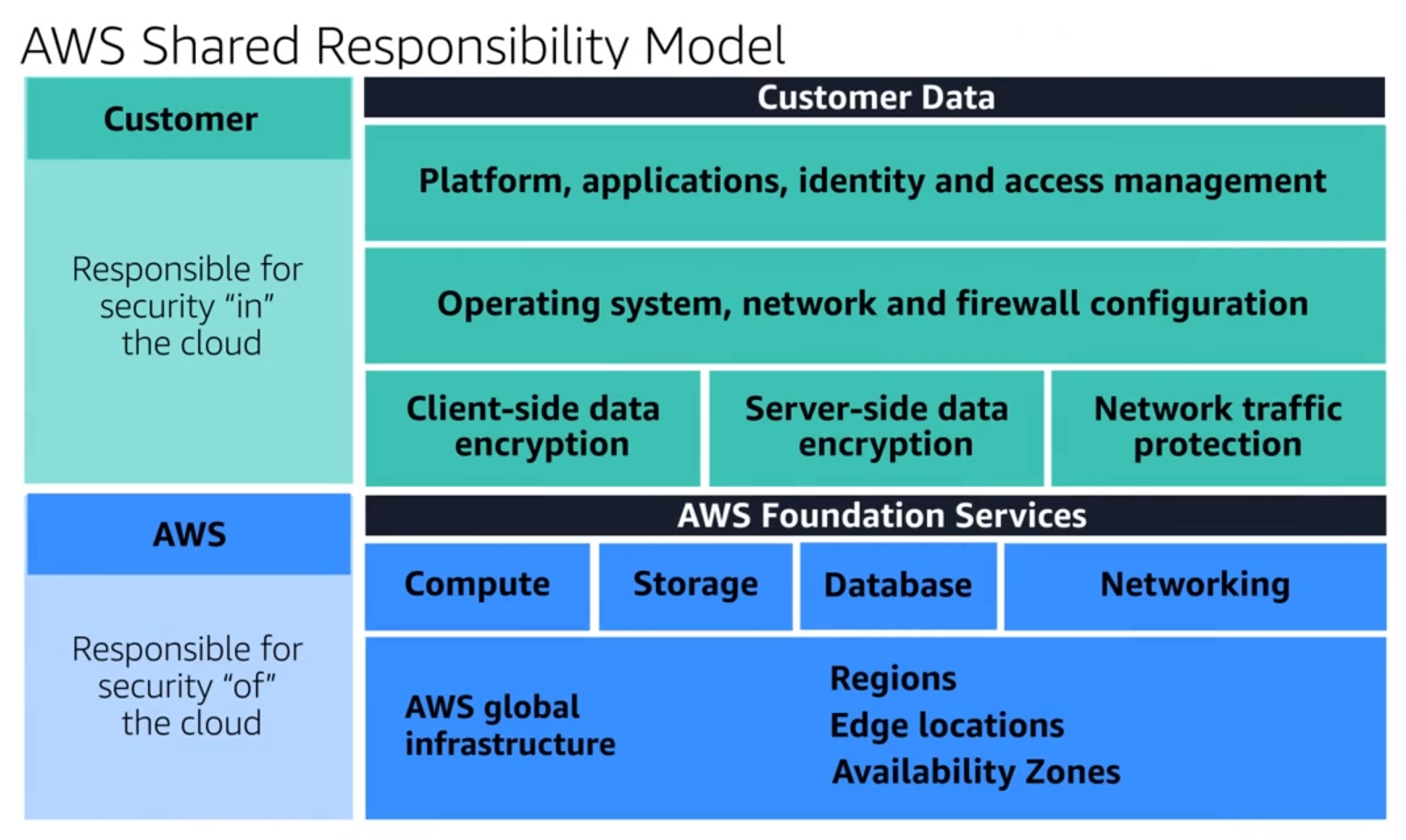

AWS-Basis-Shared_Responsibility_Model.png Credit: AWS Skill Builder

Region, Availability Zones, Local Zones, Edge Locations

Regions are independent groups of datacenters physically distant from one another. This allows fault tolerance against failures caused by natural disasters.

Availability Zones are datacenters physically separated but linked with a high-performance network within a Region. Each Region is composed of at least 2 Availability Zones. This allows fault tolerance against outages caused failures that may be caused by power or network failures.

Local Zones are "extensions of region", they are datacenter closer to you, to reduce the latency. They are like an additional Availability Zone. It is useful when very low latency is required.

Edge Locations are local places for the user to access data. They are datacenters specifically built for content delivery (websites). They store data temporarily (cache).

ARN

An Amazon ARN is the way AWS generate a unique identifier for all resources in the AWS Cloud. It consists of multiple strings separated by colons.

The format is:

arn:aws:<service>:<region>:<account_id>:<resource_type>/<resource_name>

Security, Identity, & Compliance

Arch-Category_Security-Identity-Compliance_64.svg

IAM & STS (Security Token Service)

Arch_AWS-Identity-and-Access-Management_48.svg

IAM is the service used for controlling how users and programs in an AWS account can interact with the AWS API.

Cognito

Arch_Amazon-Cognito_48.svg

Amazon Cognito provides authentication, authorization, and user management for web and mobile apps. It can be configured to work with a regular user/password or with a third party identity providers that support SAML or OpenID Connect (e. g. Facebook or Google).

There are two services in Cognito:

  • User Pools (Authentication Service): User directories that provide sign-up and sign-in options for your app users. Returns OIDC Tokens.
    • Free under 50000 active users per month.
    • External Provider for federated user pool.
  • Identity Pools (Authorization Service): Used to grant access to other AWS services. Return an STS Session (assumed IAM Role) in exchange for a token.
    • Free to use.

Secret Manager

Arch_AWS-Secrets-Manager_48.svg

Secret Manager can store secrets and automatically rotate them.

Macie

Arch_Amazon-Macie_48.svg

Amazon Macie is a data security service that uses machine learning (ML) and pattern matching to discover and help protect your sensitive data.

AWS Certificate Manager (ACM)

Arch_AWS-Certificate-Manager_48.svg

AWS Certificate Manager

WAF & Shields

Arch_AWS-WAF_48.svg

To create a WAF protection, it is required to first create a condition (like Geo match for example), and then create a rule using this condition. After that, create an ACL (Access Control List) with the rule previously created and associate it to the resource to protect (a Load Balancer for example).

Summary: ACL based on a Rule using a Condition.

Networking and Content Delivery

Arch-Category_Networking-Content-Delivery_64.svg

Route 53

Arch_Amazon-Route-53_48.svg

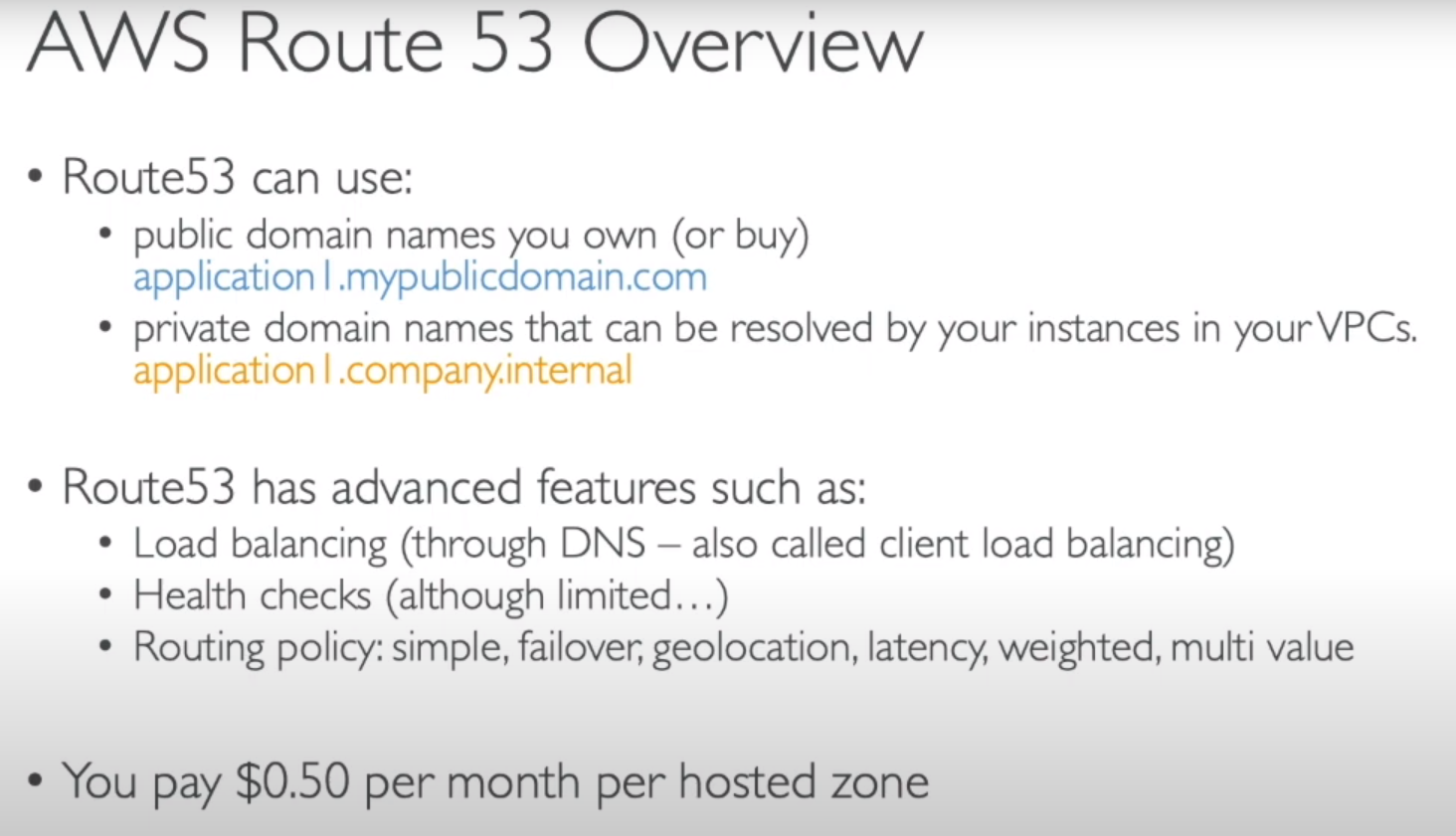

AWS-Service-Route_53.png Credit: Stephane Maarek

VPC (Virtual Private Cloud)

Arch_Amazon-Virtual-Private-Cloud_48.svg

VPC stands for Virtual Private Cloud. It's Virtual Network in which to place Virtual Machines. A VPC reside in a Region (this means it is available to all Availability Zones within the Region).

In order to build a highly available network, it is recommended to deploy it in at least two Availability Zones.

CloudFront (CDN)

Arch_Amazon-CloudFront_48.svg

CloudFront improves performance for both cacheable content (such as images and videos) and dynamic content (such as API acceleration and dynamic site delivery).

CDN with over 160 points of presence. Creating a distribution takes around 10-15 min.

Only outgoing bandwidth is charged (and CloudFront's costs around 10-15% less than S3's).

Global Accelerator

Arch_AWS-Global-Accelerator_48.svg

Global Accelerator improves performance for a wide range of applications over TCP or UDP by proxying packets at the edge to applications running in one or more AWS Regions.

Use cases:

  • Good fit for non-HTTP use cases, such as gaming (UDP), IoT (MQTT), or Voice over IP.
  • Good for HTTP use cases that require static IP addresses.
  • Good for HTTP use cases that required deterministic, fast regional failover.

ELB (Elastic Load Balancer)

Arch_Elastic-Load-Balancing_48.svg

ELB is a managed load balancer (by AWS). It costs more than a self-managed load balancer, but it is effortless to manage.

ELB allows "Sitckiness" (Session Affinity): a user will end up using the same instance.

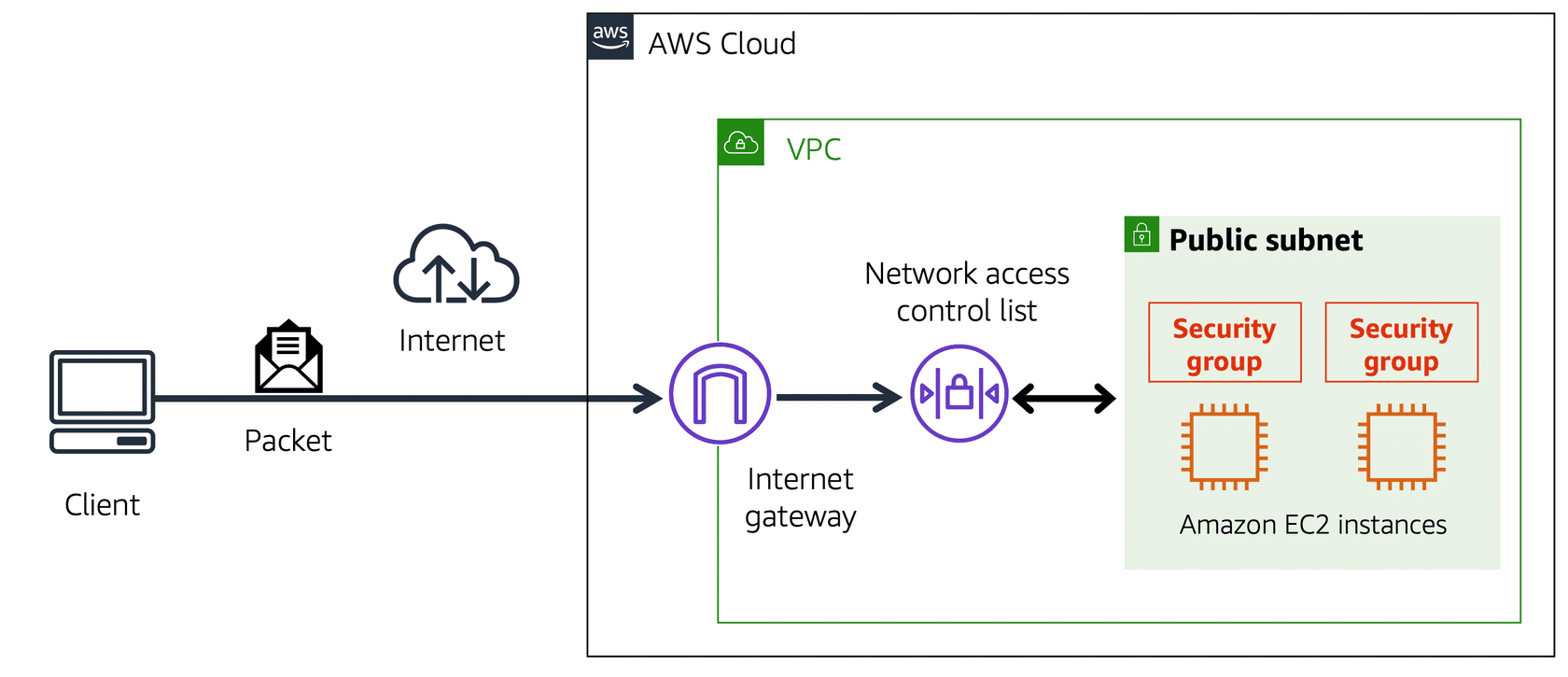

Network ACL vs Security Group


Network ACL

A NACL is bound to a Subnet. It only applies (evaluate a packet) when crossing a subnet.

A Security group is Stateless (check very packets that cross border).

  • Stateless firewall
  • Access Control In
  • Access Control Out

The Defaut Network ACL of an AWS allows all inbound and outbound traffic

Security Group

A Security Group is bound to an ENI (Elastic Network Interface). It applies to check if packets can reach specific instances or not:

  • Protocol (UDP or TCP),
  • Port Range,
  • Source.

The source can be another Security Group!

A Security group is Stateful.

  • Stateful firewall,
  • Deny all Inbound traffic by default,
  • Allow all Outbound traffic by default,
  • Can only create "Allow" rules.

Compute

Arch-Category_Compute_64.svg

Lightsail

Arch_Amazon-Lightsail_48.svg

Little virtual servers stacks for simple websites, or development/tests environments.

OS available : Amazon Linux, Ubuntu, Debian, FreeBSD, Windows Server Stacks available : Node.js, GitLab, LAMP, Nginx, Django, ...

EC2 (Elastic Compute Cloud)

Arch_Amazon-EC2_48.svg

EC2 stands for Elastic Compute Cloud. It's the same as Lightsail, but with more options and features.

Lambda (Serverless Function)

Arch_AWS-Lambda_48.svg

AWS Lambda is a serverless function.

Beanstalk

Arch_AWS-Elastic-Beanstalk_48.svg

With given code and configuration settings, Elastic Beanstalk deploys the resources necessary (EC@, QSG,ELB, RDS, ...) to perform the following tasks:

  • Adjust capacity
  • Load balancing
  • Automatic scaling
  • Application health monitoring

Containers

Arch-Category_Containers_64.svg

ECS (Elastic Container Service)

Arch_Amazon-Elastic-Container-Service_48.svg

Container orchestrator made by Amazon. Containers can be run on AWS Fargate (serverless), EC2 instances or ECS Anywhere (External Instance)

Terminology:

  • Service: containers designed to run continuously (equivalent to a Pod in Kubernetes?).
  • Task: a container that will execute a task and then stop.

EKS (Elastic Kubernetes Service)

Arch_Amazon-Elastic-Kubernetes-Service_48.svg

Container orchestrator Kubernetes.

Fargate (Serverless Compute Engine)

Arch_AWS-Fargate_48.svg

Fargate is a serverless compute engine for containers (uses ECS and EKS).

Storage

Arch-Category_Storage_64.svg

S3 (Simple Storage Service)

Arch_Amazon-Simple-Storage-Service_48.svg

S3 (Simple Storage Service) is a file storage service accessible via HTTP and HTTPS requests.

It's an object storage: when there is a change to the object, the entire file must be re-uploaded.

EBS (Elastic Bock Store)

Arch_Amazon-Elastic-Block-Store_48.svg

Amazon Elastic Block Store is a service that provides block-level storage volumes that you can use with Amazon EC2 instances. If you stop or terminate an Amazon EC2 instance, all the data on the attached EBS volume remains available.

Block storage breaks files in small blocks: when a change is made to the file, only modified blocks are re-uploaded.

Multi Attach EBS max to 16 instances.

EFS (Elastic File System)

Arch_Amazon-EFS_48.svg

EFS (Elastic File System) allows you to have multiple EC2 instances accessing data at the same time.

AWS Backup

Arch_AWS-Backup_48.svg

AWS Backup is a simple and cost-effective way to protect your data by backing up your Amazon EFS file systems. Amazon EFS is natively integrated with AWS Backup.

S3 vs EBS vs EFS

S3 vs EBS

S3:

  • When using complete objects or occasional changes.

EBS:

  • When using complex read, write change functions.

EBS vs EFS

EBS:

  • It's a volume attached to EC2 instances.
  • Availability Zone level resource (requires to be in the same AZ as the EC2 instances to be attached to it).

EFS:

  • Multiple instances can read and write at the same time.
  • Linus file system (like NFS).
  • It's a regional resource.
  • Automatically scales?

Database

Arch-Category_Database_64.svg

RDS (Relational Database Service)

Arch_Amazon-RDS_48.svg

RDS stands for Relational Database Service. Available databases are: AWS Aurora (MySQL Compatible), AWS Aurora (PostgreSQL Compatible), MySQL, MariaDB, PostgreSQL, Oracle and Microsoft SQL Server.

Amazon Aurora (Relational Database)

Arch_Amazon-Aurora_48.svg

Aurora is a cloud optimized database service from AWS (proprietary tech). Available databases are: MySQL and PostgreSQL.

Cost 20% more than RDS, but it is more efficient and comes with functionalities like:

  • storage automatically grows (10Gb to 64 TB),
  • data replication (up to 15 replicas),
  • backup to S3,
  • high availability (with failover instantaneous),
  • point-in-time recovery (Backtrack),
  • can't ssh.

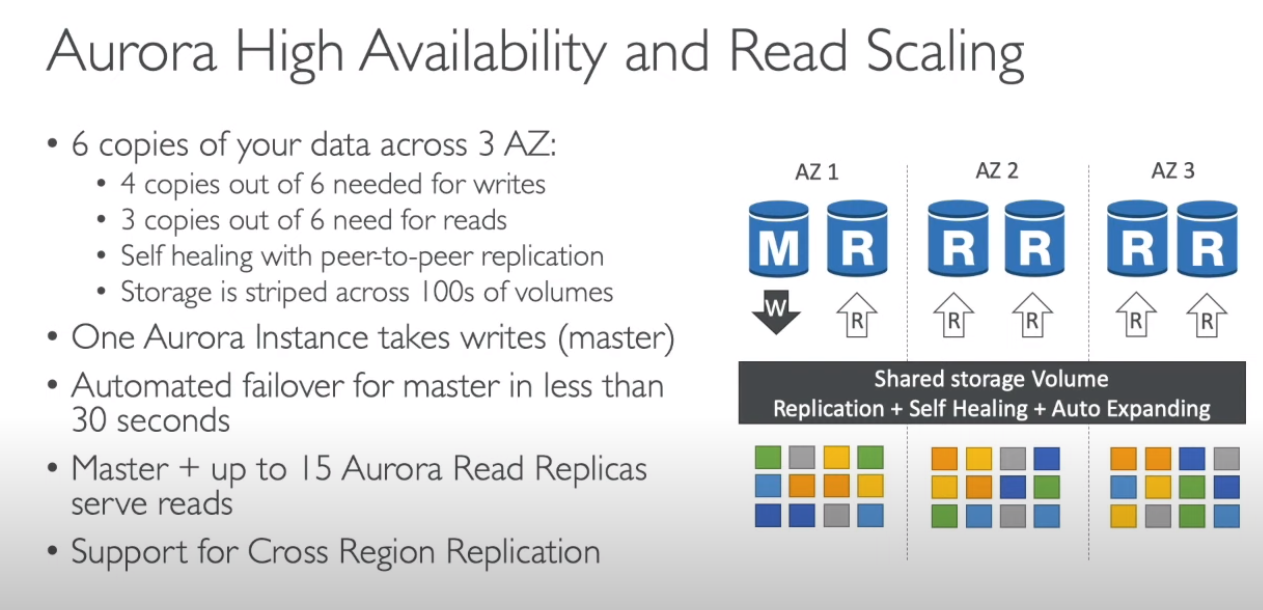

AWS-Aurora-Read_scaling.png Credit: Stephane Maarek

DynamoDB (NoSQL Database)

Arch_Amazon-DynamoDB_48.svg

Amazon DynamoDB(opens in a new tab) is a key-value database service. It delivers single-digit millisecond performance at any scale. DynamoDB is serverless, which means that you do not have to provision, patch, or manage servers.

Amazon Redshift (Data Warehouse)

Arch_Amazon-Redshift_48.svg

Amazon Redshift is a data warehousing service that you can use for big data analytics. It offers the ability to collect data from many sources and helps you to understand relationships and trends across your data.

DMS (Database Migration Service)

Arch_AWS-Database-Migration-Service_48.svg

AWS DMS, allows moving data between a source database and a target database. The source and target databases can be of the same type or different types.

The source can be a database on premise, an EC2 or an RDS. The target can be an EC2 or an RDS.

During the migration, your source database remains operational, reducing downtime for any applications that rely on the database.

AWS Migration Hub can be used to track the progress of migrations.

Uses cases:

  • Database migration (to the cloud).
  • Development and test database migration (copy production database to test database).
  • Database consolidation (migrate multiple databases into one).
  • Continuous database replication (disaster recovery or geographic separation).

Other Databases

  • Amazon DocumentDB: a document database service that supports MongoDB workloads.

  • Amazon Neptune: a graph database service. For building and running applications that work with highly connected datasets, such as recommendation engines, fraud detection, and knowledge graphs.

  • Amazon QLDB (Amazon Quantum Ledger Database): a ledger database service. For reviewing a complete history of all the changes that have been made to your application data.

  • Amazon Managed Blockchain: a service that can be used to create and manage blockchain networks with open-source frameworks. Blockchain is a distributed ledger system that lets multiple parties run transactions and share data without a central authority.

  • Amazon ElastiCache: a service that adds caching layers on top of databases to help improve the read times of common requests. It supports two types of data stores: Redis and Memcached.

  • Amazon DAX (DynamoDB Accelerator): an in-memory cache for DynamoDB. It helps improve response times from single-digit milliseconds to microseconds.

Application Integration

Arch-Category_Application-Integration_64.svg

SQS (Simple Queue Service)

Arch_Amazon-Simple-Queue-Service_48.svg

Send, store, receive messages at any volume. SQS queues are where messages are places until they are consumed.

SQS (Simple Notification Service)

Arch_Amazon-Simple-Notification-Service_48.svg

Similar to SQS, but can send notification to end users (publish/subscribe mode). An SNS topic is a channel for messages to be deliverd.

Analytics

Kinesis

Arch_Amazon-Kinesis_48.svg

Collect, process, and analyze real-time data streams.

Kinesis vs SQS FIFO

Kinesis Data Stream

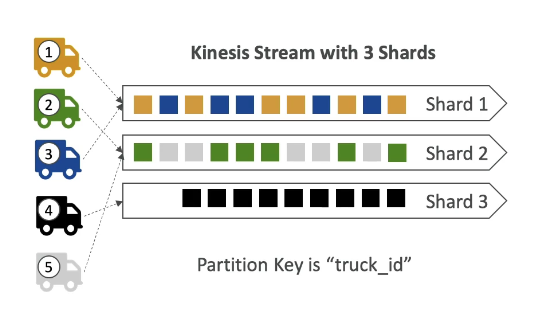

Ordering Data with Kinesis is done by distributing data in the multiple shards available resulting in a kind of FIFO.


SQS FIFO

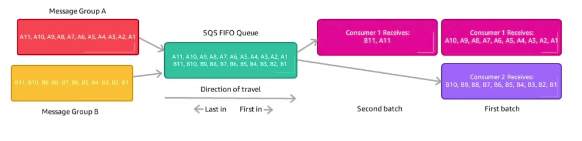

In a SQS FIFO only one customer can be set if no Group IDs are configured.

Using a Group ID result in a similar approach to Kinesis. The key difference is that in order to add a customer it is necessary to add a Group ID (in Kinesis it is necessary to add shards, which cost more).


Management & Governance

Arch-Category_Management-Governance_64.svg

CloudWatch (Logs)

Arch_Amazon-CloudWatch_48.svg

Metrics and logs about resources. These metrics can be used to create Dashboards and Alarms.

CloudTrail

Arch_AWS-CloudTrail_48.svg

CloudTrail records API calls for your account (useful for auditing). The recorded information includes the identity of the API caller, the time of the API call, the source IP address of the API caller, ...

Trusted Advisor

Arch_AWS-Trusted-Advisor_48.svg

Trusted Advisor gives recommendation on our AWS resources:

  • Cost optimization
  • Performance
  • Security
  • Fault tolerance
  • Service limits

CloudFormation

Arch_AWS-CloudFormation_48.svg

CloudFormation is a service to automate deployment of AWS resources. It is an IaC tool using JSON or YAML files.

Note: In CloudFormation, all actions are resources (including actions to attach items to each other).

Service Catalog

Arch_AWS-Service-Catalog_48.svg

AWS Service Catalog allows you to create and manage catalogs of IT services that can be deployed within your organization.

With Service Catalog, you can define a standardized set of products (solutions and tools in this case) that customers can self-service provision. By creating Service Catalog products, you can control and enforce the deployment of approved and validated solutions and tools.
